Solar Wall Light - Specifications

Can be used for many purpose eg to lighten up house numbers, along a walking path, to brighten a dark corner, back or side door, on a pavilion etc

Model number : DS-SWL18W30LED
Color : Black
Solar Panel : 1.8W, Monocrystalline. 6V
LED : 30pcs SMD LED.
LED lifespan: 100000Hours
Battery : 1pc 3.7V 2200mAh Lithium battery

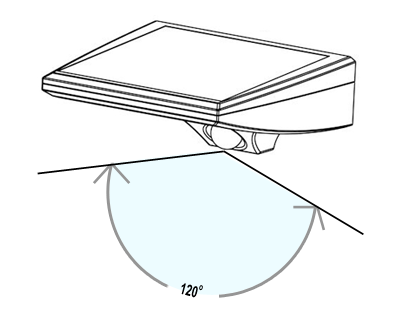

Trigger by PIR sensor : Sensor angle 120degree Longest sensor semi diameter is 5meters.

Light up at night and auto switch to standby mode. The PIR sensor will trigger full lighting when it detects movement for around 30 seconds, after which it will auto switch to standby mode.
Estimated standby hours : 10 hours after fully charged
Charging time : Around 6 hours under direct sunlight
Brightness : Standby: 40 Lumens.
Full light : 180 Lumens
Protection Level : IPX4
Size of wall light : 180mm x 170mm x 80mm
Max installation height : 3meters.
See Instruction Manual on installation
Weight of wall light : Estimated : 400gram
Carton box : Packed in brown.
Include in box : 1 x Wall light.
2 x screws.
2 x wall plug. Instruction Manual
